CRYSTAL
DIP quartz crystals

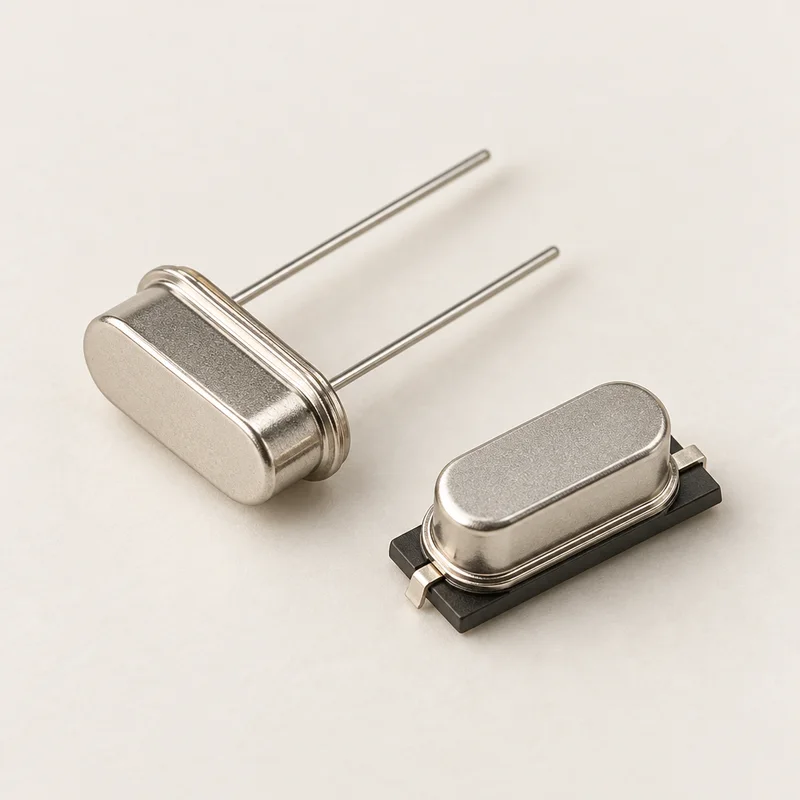

DIP Crystal (HC-49)
HC-49U/S through-hole and HC-49 SMD quartz crystals from 3–75 MHz.
Product inquirySpecifications
| Reference series | HC-49U/S／HC-49U/SMD |
|---|---|
| Nominal frequency | 3–75 MHz |
| Reference package | 11.5 × 4.7 mm |
| Frequency stability | ±10–±30 ppm |
Values are series references. Confirm specifications, test conditions and availability by part number.
Series specifications
DIP / SMD crystals (HC-49)
| Series | Dimensions (mm) | Nominal frequency | Frequency stability | Temperature range |
|---|---|---|---|---|
| HC-49U/S | 11.5×4.7×3.5 | 3 – 75 MHz | ±10 – ±30 ppm | -20 – +70 °C／-40 – +85 °C |
| HC-49U/SMD | 11.5×4.7×3.9 | 3 – 75 MHz | ±10 – ±30 ppm | -20 – +70 °C／-40 – +85 °C |
Series data is taken from the TCTI company profile; confirm actual specifications and availability by part number.
Applications
Crystal Unit design checklist
Review the component with its oscillator circuit and include these conditions in your inquiry.
- Frequency and temperature
- List nominal frequency, tolerance and operating temperature, and review datasheet test conditions.
- Load and drive
- Provide the IC, target load capacitance and ESR/drive requirements and review the IC design documentation.
- Layout and samples
- Review dimensions, landing patterns and layout; record board revision, method and environment during sample tests.
Technical documents & selection
For a part-specific datasheet, email the product name and operating conditions.
