CRYSTAL
Thermistor crystals (TSX)
TSX

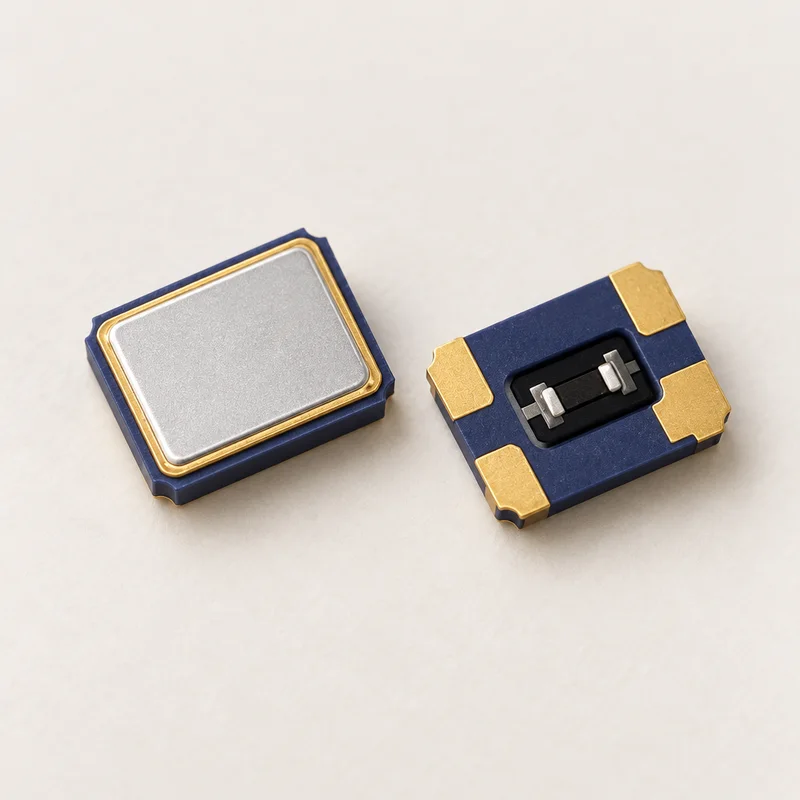

SMD quartz crystals with a built-in thermistor, providing a frequency reference and temperature sensing.
Product inquirySpecifications
| Type | SMD 石英諧振器＋熱敏電阻 |
|---|---|
| Selection conditions | 頻率、封裝尺寸、熱敏電阻特性；規格依需求洽詢 |
Values are series references. Confirm specifications, test conditions and availability by part number.
Applications
Crystal Unit design checklist
Review the component with its oscillator circuit and include these conditions in your inquiry.
- Frequency and temperature
- List nominal frequency, tolerance and operating temperature, and review datasheet test conditions.
- Load and drive
- Provide the IC, target load capacitance and ESR/drive requirements and review the IC design documentation.
- Layout and samples
- Review dimensions, landing patterns and layout; record board revision, method and environment during sample tests.
Technical documents & selection
For a part-specific datasheet, email the product name and operating conditions.
