CRYSTAL
RTC tuning fork crystals
Tuning Fork Crystal
32.768 kHz tuning-fork crystals for real-time clocks (RTC) and timing circuits, in DIP and SMD packages.
Product inquirySpecifications
| Reference series | TF38/26(DIP)/TF26S(SMD)/FC3215(SMD) |
|---|---|
| Nominal frequency | 32.768 kHz |
| Package size | 6.3×2.0 mm;6.0×1.9 mm;3.2×1.5×0.9 mm |
| Frequency tolerance | ±15–±100 ppm(TF38/26、TF26S);±20 ppm(FC3215) |
| Operating temperature | -10–+60 °C/-20–+70 °C(圓柱型);-40–+105 °C(貼片型 FC3215) |
Values are series references. Confirm specifications, test conditions and availability by part number.
Series specifications
RTC tuning fork crystal series
| Photo | Series | Package | Dimensions (mm) | Frequency | Frequency tolerance | Operating temperature |
|---|---|---|---|---|---|---|
![]() | TF38/26 | DIP (cylinder) | 6.3×2.0 | 32.768 kHz | ±15 – ±100 ppm | -10 – +60 °C -20 – +70 °C (standard) |
![]() | TF26S | SMD (cylinder) | 6.0×1.9 | 32.768 kHz | ±15 – ±100 ppm | -10 – +60 °C -20 – +70 °C (standard) |
![]() | FC3215 | SMD (chip) | 3.2×1.5×0.9 | 32.768 kHz | ±20 ppm | -40 – +105 °C |
Series data and photos follow the TCTI product catalog; confirm actual specifications by part number.
Applications

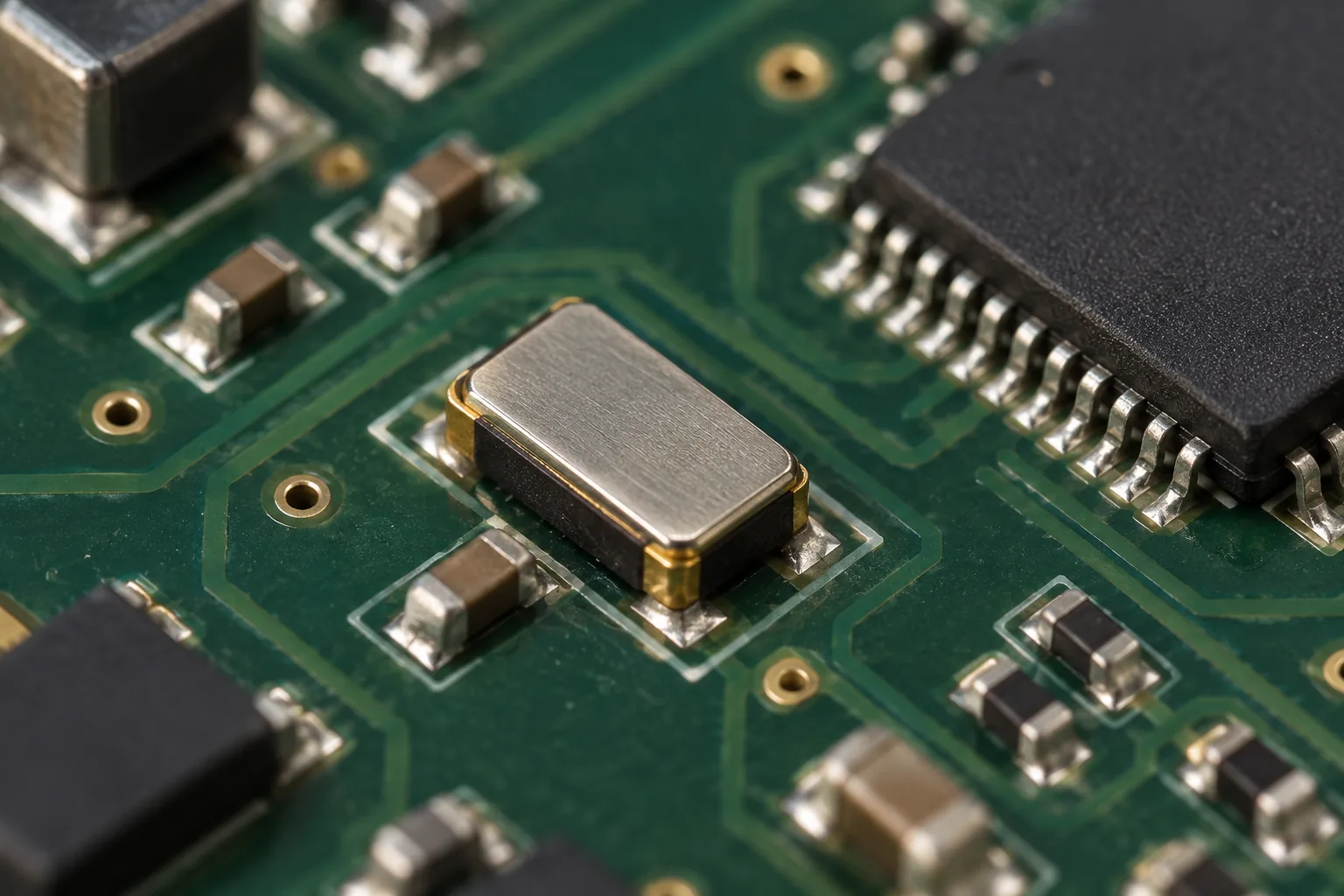

Crystal Unit design checklist
Review the component with its oscillator circuit and include these conditions in your inquiry.
- Frequency and temperature
- List nominal frequency, tolerance and operating temperature, and review datasheet test conditions.
- Load and drive
- Provide the IC, target load capacitance and ESR/drive requirements and review the IC design documentation.
- Layout and samples
- Review dimensions, landing patterns and layout; record board revision, method and environment during sample tests.

Technical documents & selection
For a part-specific datasheet, email the product name and operating conditions.
